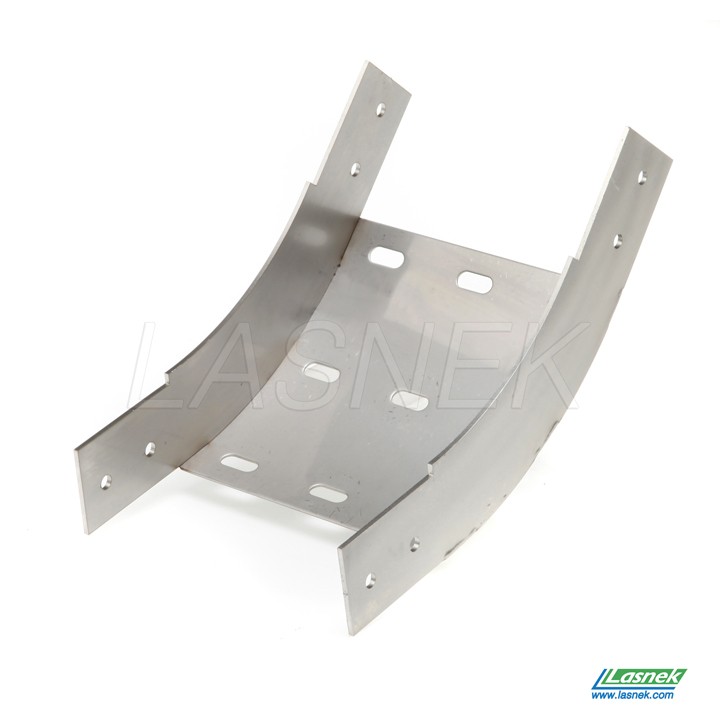

45° Inside Riser | A-HDXF-100-16_uk
45° Inside Riser | A-HDXF-100-16_uk

SKU: A-HDXF-100-16

45° Inside Riser

Matt

Stainless Steel Heavy Duty Return Flange Cable Tray (HDRF)

HDRF Perforated Cable Tray – suitable for installations across a wide range of sectors requiring a deeper channel for larger diameter cables or additional strength.  With the similar design ‘U’ coupler shared with our other ranges, the 1.5mm thick stainless steel material provides a popular solution to the more demanding applications.

  • 50mm Return Profile
  • Hygiene friendly
  • 1.5mm Stainless Steel
  • Matt Finish
  • Suitable for most commercial / industrial applications
  • Available from stock
Quote Enquire about this product Download Specification Sheet

Fast Delivery

Same-day despatch and next-day delivery available.

Large Inventory

Many components ready-to-ship from our warehouses.

Bespoke Solutions

Needs are different, we are always here to help.

Specification

Dimensions
Width (mm) 100
Weight (kg) 0.54
Thickness (mm) 1.5
Material Information
Grade 316-1.4404
Finish Matt
Finish Long Name 2B Matt - ( No Grain )
Additional Information
Commodity Code 73269098
Profile Type Straight
Slot Dimensions 8x19
Available Option Cover
Available Option Bespoke Dimensions
Size (W x H mm) 100 x 50
Download Specification Sheet
