Terminal Box With Switch Mounting Plate | KTB-09_uk
Terminal Box With Switch Mounting Plate | KTB-09_uk

SKU: KTB-09

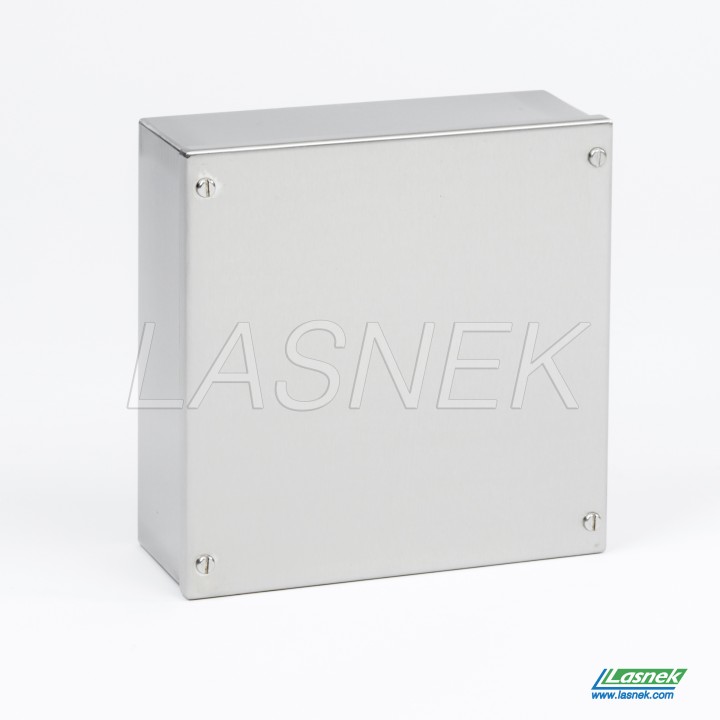

Terminal Box With Switch Mounting Plate

Satin

Terminal Boxes

Lasnek screw down lid junction box, 304 stainless steel dull polish finish ( 220 grit ) rating IP66 complete with internal switch plate

Quote Enquire about this product Download Specification Sheet

Fast Delivery

Same-day despatch and next-day delivery available.

Large Inventory

Many components ready-to-ship from our warehouses.

Bespoke Solutions

Needs are different, we are always here to help.

Specification

Material Information
Grade 304-1.4301
Finish Satin
Dimensions
Size (HxWxD - mm) 225 x 225 x 85
Height (mm) 225
Width (mm) 225
Depth (mm) 85
Thickness (mm) 1.2
Weight (kg) 2.816
Product Options
Available Option Wall Plate or Mounting Lugs
Available Option Stand Off Bracket
Available Option DIN Rail
Available Option Bespoke Dimensions
Available Option Additional Cut Outs
Additional Information
Commodity Code 73269098
Ingress Protection ( uk ) IP65
Switch Plate Included
Earth Studs 1 Body & 1 Cover
Download Specification Sheet
